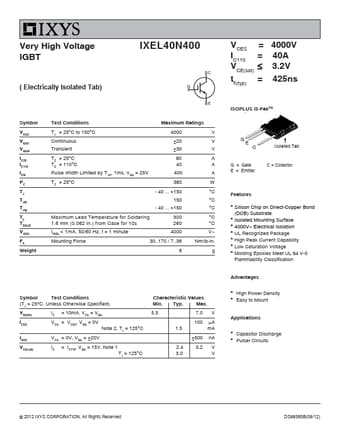

Very High Voltage IGBT ( Electrically Isolated Tab) IXEL40N400 VCES = IC110 VCE(sat) = ≤ tfi(typ) = 4000V 40A 3.2V 425ns Symbol VCES VGES VGEM IC25 IC110 ICM PC TJ TJM Tstg TL TSOLD VISOL FC Weight Test Conditions Maximum Ratings TJ = 25°C to 150°C Continuous Transient 4000 ±20 ±30 V V V TC = 25°C TC = 110°C Pulse Width Limited by TJM, 1ms, VGE = 25V TC = 25°C 90 40 400 380 - 40 +150 150 - 40 +150 A A A W °C °C °C Maximum Lead Temperature for Soldering 1.6 mm (0.062 in.) from C

IXEL40N400 Features

* Silicon Chip on Direct-Copper Bond (DCB) Substrate Isolated Mounting Surface 4000V~ Electrical Isolation UL Recognized Package High Peak Current Capability Low Saturation Voltage Molding Epoxies Meet UL 94 V-0 Flammability Classification Advantages High Power Density Easy to Mount Applications Capac
