IXFH270N06T3, IXFA270N06T3 Power MOSFET

IXFH270N06T3 Description

Advance Technical Information TrenchT3TM HiperFETTM Power MOSFET IXFA270N06T3 IXFP270N06T3 IXFH270N06T3 VDSS = ID25 = RDS(on)  60V 270A 3.1m N-.

IXFH270N06T3 Features

* International Standard Packages
* 175°C Operating Temperature
* High Current Handling Capability
* Avalanche Rated
* Fast Intrinsic Rectifier
* Low RDS(on) Advantages
* Easy to Mount
* Space Savings

IXFH270N06T3 Applications

* DC-DC Converters & Off-Line UPS
* Primary-Side Switch
* High Current Switching Applications © 2016 IXYS CORPORATION, All Rights Reserved DS100698A(01/16) Symbol Test Conditions (TJ = 25C, Unless Otherwise Specified) gfs VDS = 10V, ID = 60A, Note 1 Ciss Coss Crss VGS = 0V, VDS

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IXFH270N06T3, IXFA270N06T3. Please refer to the document for exact specifications by model.

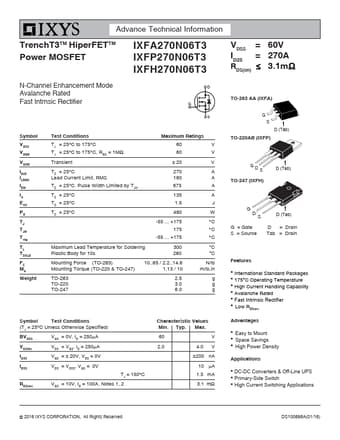

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IXFH270N06T3, IXFA270N06T3
Manufacturer
IXYS
File Size
289.43 KB
Datasheet
IXFA270N06T3-IXYS.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IXFH270N06T3, IXFA270N06T3.
Please refer to the document for exact specifications by model.
