IXFP80N25X3 Power MOSFET

X3-Class HiPerFETTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXFP80N25X3 IXFQ80N25X3 IXFH80N25X3 VDSS = ID25 =  RDS(on) 250V 80A 16m TO-220 (IXFP) Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient TC = 25C TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C IS  IDM, VDD  VDSS, TJ  150°C TC = 25C Maximum Lead Temperature for Soldering 1.6 mm (0.0.

IXFP80N25X3 Features

* International Standard Packages

* Low RDS(ON) and QG

* Avalanche Rated

* Low Package Inductance Advantages

* High Power Density

* Easy to Mount

* Space Savings Applications

* Switch-Mode and Resonant-Mode Power Supplies

* DC-DC Converters

* PFC Circuits

IXFP80N25X3 Datasheet (338.95 KB)

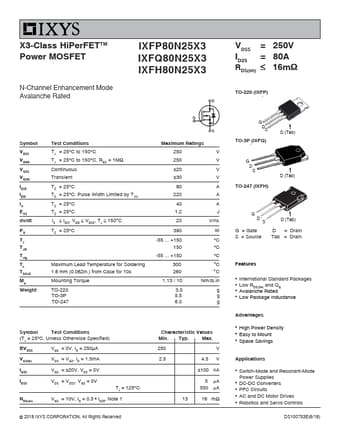

IXFP80N25X3 Datasheet Preview — Preview of IXFP80N25X3 PDF

Datasheet Details

Part number:

IXFP80N25X3

Manufacturer:

IXYS

File Size:

338.95 KB

Description:

Power mosfet.
