IXGH40N120C3 - High speed PT IGBT

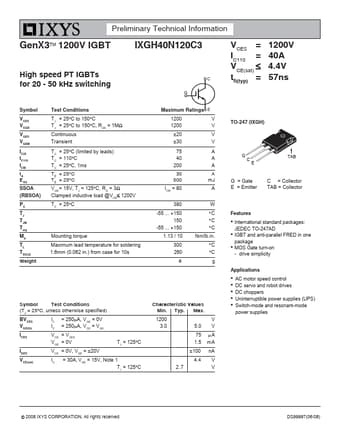

Preliminary Technical Information GenX3TM 1200V IGBT IXGH40N120C3 High speed PT IGBTs for 20 - 50 kHz switching VCES = IC110 = VCE(sat) ≤ tfi(typ) = 1200V 40A 4.4V 57ns Symbol VCES V CGR VGES VGEM IC25 I C110 I CM IA EAS SSOA (RBSOA) PC TJ TJM Tstg Md TL T SOLD Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGE = 1MΩ Continuous Transient TC = 25°C (limited by leads) TC = 110°C TC = 25°C, 1ms TC = 25°C TC = 25°C VGE= 15V, TJ = 125°C, RG = 3Ω Clamped inductive load @VCE≤ 1200.

IXGH40N120C3 Features

* z International standard packages: JEDEC TO-247AD z IGBT and anti-parallel FRED in one package z MOS Gate turn-on - drive simplicity Applications z AC motor speed control z DC servo and robot drives z DC choppers z Uninterruptible power supplies (UPS) z Switch-mode and resonant-mode power supplies
