IXRFD615X2 - 15A Dual Low-Side RF MOSFET Driver

IXYS

📥 Download Datasheet

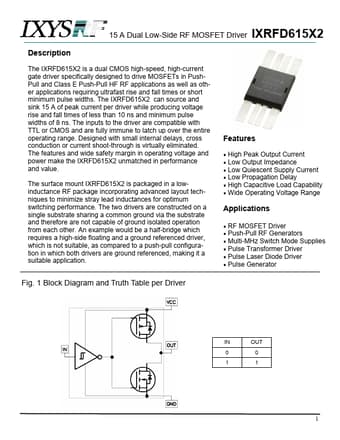

IXRFD615X2 Datasheet Preview — Preview of IXRFD615X2 PDF

Datasheet Details

Part number	IXRFD615X2
Manufacturer	IXYS
File Size	675.35 KB
Description	15A Dual Low-Side RF MOSFET Driver
Datasheet	IXRFD615X2-IXYS.pdf

IXRFD615X2 Product details

Description

The IXRFD615X2 is a dual CMOS high-speed, high-current gate driver specifically designed to drive MOSFETs in PushPull and Class E Push-Pull HF RF applications as well as other applications requiring ultrafast rise and fall times or short minimum pulse widths.

Features

and wide safety margin in operating voltage and power make the IXRFD615X2 unmatched in performance and value. The surface mount IXRFD615X2 is packaged in a lowinductance RF package incorporating advanced layout techniques to minimize stray lead inductances for optimum switching performance. The two drivers are constructed on a single substrate sharing a common ground via the substrate and therefore are not capable of ground isolated operation from each other. An example would be a half-bridge wh.
