* z High Voltage package z High Blocking Voltage z Fast Intrinsic Diode z Low Package Inductance Advantages z Easy to Mount z Space Savings Symbol Test Conditions (TJ = 25°C, Unless Otherwise Specified) BVDSS VGS = 0V, ID = 250μA VGS(th) VDS = VGS, ID = 250μA IGSS VGS = ±20V, VDS = 0V IDSS
IXTA02N250HV Datasheet (192.64 KB)
IXTA02N250HV
IXYS
192.64 KB
High voltage power mosfet.

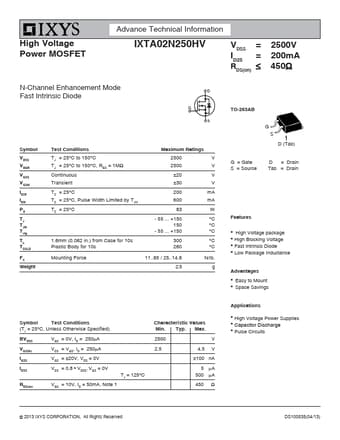

High Voltage Power MOSFET
Advance Technical Information
IXTA02N250HV
VDSS =
ID25 = ≤ RDS(on)
2500V 200mA 450Ω
N-Channel Enhancement Mode Fast Int.
