* Optimized for 10-30kHz Switching
* Square RBSOA
* Short Circuit Capability
* Anti-Parallel Sonic Diode
* High Current Handling Capability
* International Standard Packages Advantages
* High Power Density
* Low Gate Drive Requirement Applications
* Power Inverter

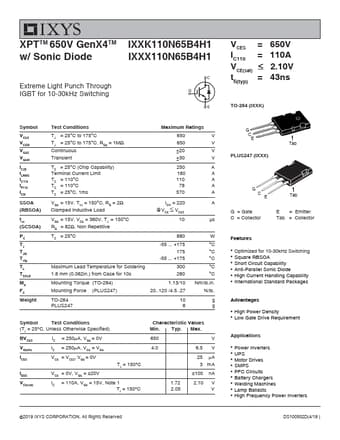

IXXK110N65B4H1 Datasheet (395.96 KB)
IXXK110N65B4H1
IXYS
395.96 KB
Extreme light punch through igbt.
XPTTM 650V GenX4TM IXXK110N65B4H1
w/ Sonic Diode
IXXX110N65B4H1
Extreme Light Punch Through IGBT for 10-30kHz Switching
VCES = 650V
IC110 = 110A
.
