IXXK160N65C4 650V IGBT

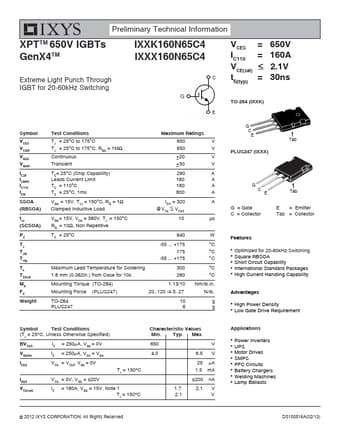

Preliminary Technical Information XPTTM 650V IGBTs GenX4TM Extreme Light Punch Through IGBT for 20-60kHz Switching IXXK160N65C4 IXXX160N65C4 VCES = IC110 = V ≤ CE(sat) tfi(typ) = 650V 160A 2.1V 30ns TO-264 (IXXK) Symbol VCES VCGR VGES VGEM IC25 ILRMS IC110 ICM SSOA (RBSOA) tsc (SCSOA) PC TJ TJM Tstg TL TSOLD Md FC Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1MΩ Continuous Transient Maximum Ratings 650 V 650 V ±20 V ±30 V TC= 25°C (Chip Capability) Leads C.

IXXK160N65C4 Features

* z Optimized for 20-60kHz Switching z Square RBSOA z Short Circuit Capability z International Standard Packages z High Current Handling Capability Advantages z High Power Density z Low Gate Drive Requirement Applications z Power Inverters z UPS z Motor Drives z SMPS z PFC Circuits z Battery Chargers
