IXXX110N65B4H1, IXXK110N65B4H1 Datasheet - IXYS

IXXX110N65B4H1 Extreme Light Punch Through IGBT

XPTTM 650V GenX4TM IXXK110N65B4H1 w/ Sonic Diode IXXX110N65B4H1 Extreme Light Punch Through IGBT for 10-30kHz Switching VCES = 650V IC110 = 110A V CE(sat)  2.10V tfi(typ) = 43ns TO-264 (IXXK) Symbol VCES VCGR VGES VGEM IC25 ILRMS IC110 IF110 ICM SSOA (RBSOA) tsc (SCSOA) PC TJ TJM Tstg TL TSOLD Md FC Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient Maximum Ratings 650 V 650 V ±20 V ±30 V TC = 25°C (Chip Capability) Terminal Cur.

IXXX110N65B4H1 Features

* Optimized for 10-30kHz Switching

* Square RBSOA

* Short Circuit Capability

* Anti-Parallel Sonic Diode

* High Current Handling Capability

* International Standard Packages Advantages

* High Power Density

* Low Gate Drive Requirement Applications

* Power Inverter

IXXK110N65B4H1-IXYS.pdf

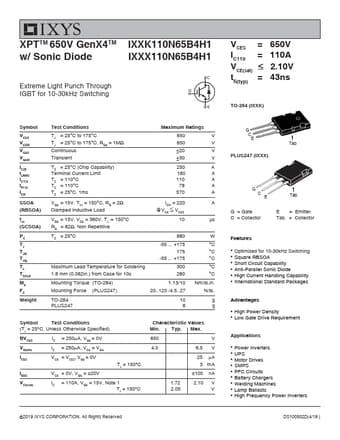

IXXX110N65B4H1 Datasheet Preview — This datasheet PDF includes multiple part numbers: IXXX110N65B4H1, IXXK110N65B4H1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IXXX110N65B4H1, IXXK110N65B4H1

Manufacturer:

IXYS

File Size:

395.96 KB

Description:

Extreme light punch through igbt.

Note:

This datasheet PDF includes multiple part numbers: IXXX110N65B4H1, IXXK110N65B4H1.
Please refer to the document for exact specifications by model.
