* Optimized for 10-30kHz Switching
* Square RBSOA
* Short Circuit Capability
* International Standard Packages
* High Current Handling Capability Advantages
* High Power Density
* Low Gate Drive Requirement Applications
* Power Inverters
* UPS
* Motor Drives

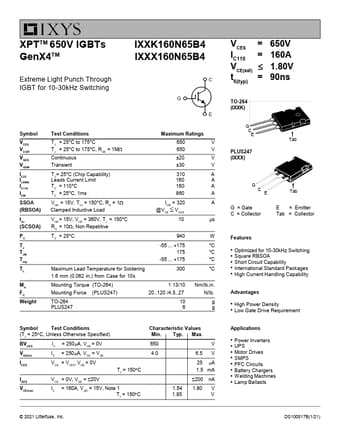

IXXX160N65B4 Datasheet (1.44 MB)
IXXX160N65B4
IXYS
1.44 MB
Extreme light punch through igbt.
XPTTM 650V IGBTs GenX4TM
Extreme Light Punch Through IGBT for 10-30kHz Switching
IXXK160N65B4 IXXX160N65B4
VCES = 650V
I
= 160A
C110
V 1.80.
