* Optimized for 10-30kHz Switching
* Square RBSOA
* Short Circuit Capability
* Anti-Parallel Sonic Diode
* High Current Handling Capability
* International Standard Package Advantages
* High Power Density
* Low Gate Drive Requirement Applications
* Power Inverters

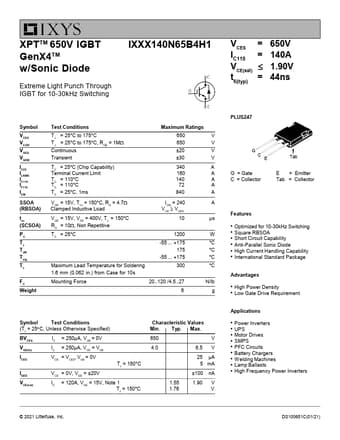

IXXX140N65B4H1 Datasheet (938.93 KB)
IXXX140N65B4H1
IXYS
938.93 KB
650v igbt.
XPTTM 650V IGBT GenX4TM w/Sonic Diode
Extreme Light Punch Through IGBT for 10-30kHz Switching
IXXX140N65B4H1
VCES = 650V
I
= 140A
C110
V 1..
