IXXX200N60C3 - 600V IGBT

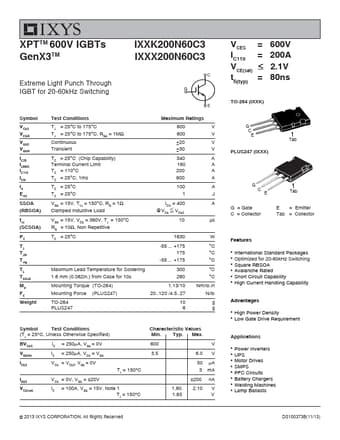

XPTTM 600V IGBTs GenX3TM Extreme Light Punch Through IGBT for 20-60kHz Switching IXXK200N60C3 IXXX200N60C3 Symbol VCES VCGR VGES VGEM IC25 ILRMS IC110 ICM IA EAS SSOA (RBSOA) tsc (SCSOA) PC TJ TJM Tstg TL TSOLD Md FC Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient Maximum Ratings 600 V 600 V ±20 V ±30 V TC = 25°C (Chip Capability) Terminal Current Limit TC = 110°C TC = 25°C, 1ms TC = 25°C TC = 25°C VGE = 15V, TVJ = 150°C, RG = 1 Clamped

IXXX200N60C3 Features

* International Standard Packages

* Optimized for 20-60kHz Switching

* Square RBSOA

* Avalanche Rated

* Short Circuit Capability

* High Current Handling Capability Advantages

* High Power Density

* Low Gate Drive Requirement Applications

* Power Inverters

* UP

IXXK200N60C3-IXYS.pdf
