* Optimized for 10-30kHz Switching
* Square RBSOA
* Short Circuit Capability
* International Standard Packages
* High Current Handling Capability Advantages
* High Power Density
* Low Gate Drive Requirement Applications
* Power Inverters
* UPS
* Motor Drives

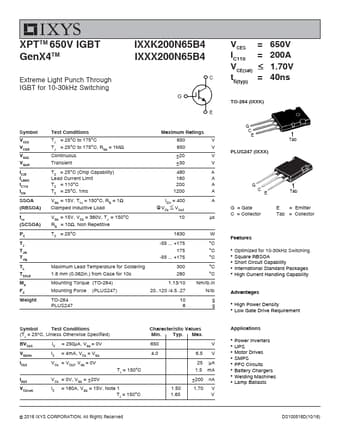

IXXX200N65B4 Datasheet (247.12 KB)
IXXX200N65B4
IXYS
247.12 KB
Extreme light punch through igbt.
XPTTM 650V IGBT GenX4TM
Extreme Light Punch Through IGBT for 10-30kHz Switching
IXXK200N65B4 IXXX200N65B4
VCES = 650V
IC110 = 200A
V CE(sat)
.
