* High Voltage Packages
* High Blocking Voltage
* High Peak Current Capability
* Low Saturation Voltage Advantages
* Low Gate Drive Requirement
* High Power Density Applications
* Switch-Mode and Resonant-Mode Power Supplies
* Uninterruptible Power Supplies (UPS)

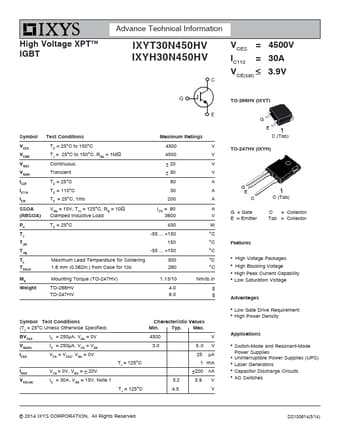

IXYH30N450HV Datasheet (240.39 KB)
IXYH30N450HV
IXYS
240.39 KB
Igbt.
High Voltage XPTTM IGBT
Advance Technical Information
IXYT30N450HV IXYH30N450HV
VCES = IC110 = VCE(sat)
4500V 30A 3.9V
