IXYH75N65C3 Datasheet - IXYS

IXYH75N65C3 IGBT

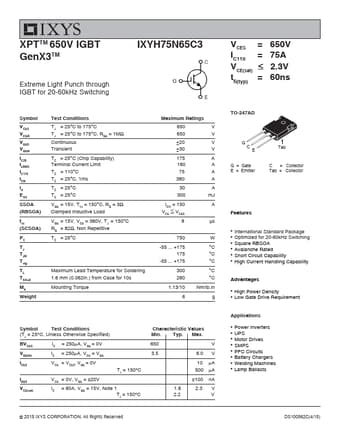

XPTTM 650V IGBT GenX3TM Extreme Light Punch through IGBT for 20-60kHz Switching IXYH75N65C3 VCES = 650V IC110 = 75A VCE(sat)  2.3V tfi(typ) = 60ns Symbol VCES VCGR VGES VGEM IICLR25MS IC110 ICM IA EAS SSOA (RBSOA) tsc (SCSOA) PC TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient TTeC rm=in2a5l°CCu(rCrehnipt Capability) Limit TC = 110°C TC = 25°C, 1ms TC = 25°C TC = 25°C VGE = 15V, TVJ = 150°C, RG = 3 Clamped Inductiv.

IXYH75N65C3 Features

* International Standard Package

* Optimized for 20-60kHz Switching

* Square RBSOA

* Avalanche Rated

* Short Circuit Capability

* High Current Handling Capability Advantages

* High Power Density

* Low Gate Drive Requirement Applications

* Power Inverters

* UPS

IXYH75N65C3 Datasheet (227.94 KB)
