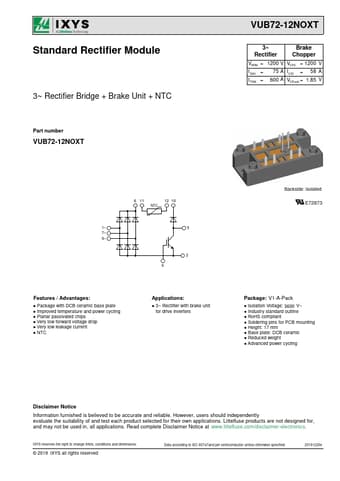

VUB72-12NOXT Datasheet, Rectifier, IXYS

VUB72-12NOXT Features

• Rectifier / Advantages:
• Package with DCB ceramic base plate
• Improved temperature and power cycling
• Planar passivated chips
• Very low forward voltage drop

PDF File Details

Part number:

VUB72-12NOXT

Manufacturer:

IXYS

File Size:

355.53kb

Download:

📄 Datasheet

Description:

Standard rectifier.

VUB72-12NOXT Application

• Applications
• 3~ Rectifier with brake unit for drive inverters Backside: isolated Package: V1-A-Pack
• Isolation Voltage: 3600 V~
