VUB72-16NOXT Standard Rectifier Module

IXYS

Description

Standard Rectifier Module 3~ Rectifier Bridge + Brake Unit + NTC Part number VUB72-16NOXT VUB72-16NOXT 3~ Rectifier Brake Chopper VRRM = I DAV = I.

📥 Download Datasheet

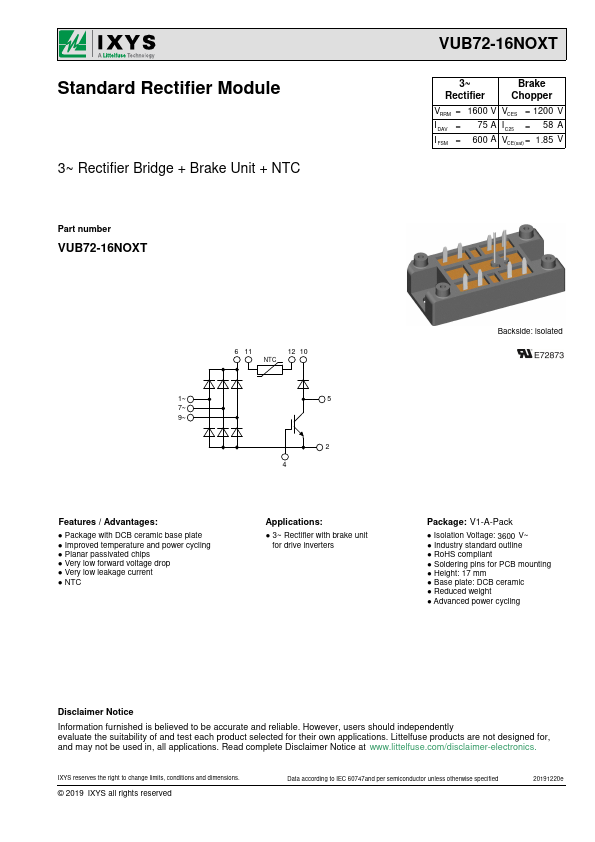

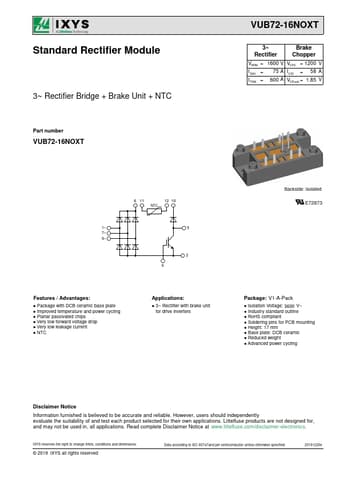

VUB72-16NOXT Datasheet Preview — Preview of VUB72-16NOXT PDF

Datasheet Specifications

Part number: VUB72-16NOXT
Manufacturer: IXYS
File Size: 355.93 KB
Datasheet: VUB72-16NOXT-IXYS.pdf
Description: Standard Rectifier Module

Features

* / Advantages:
* Package with DCB ceramic base plate
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop
* Very low leakage current

Applications

* 3~ Rectifier with brake unit for drive inverters Backside: isolated Package: V1-A-Pack
* Isolation Voltage: 3600 V~
* Industry standard outline
* RoHS compliant
* Soldering pins for PCB mounting
* Height: 17 mm
* Base plate: DCB ceramic
* Reduced weight
* Adva
