2SA1276 POWER TRANSISTOR

2SA1276 Description

isc Silicon PNP Power Transistor 2SA1276 .
Collector-Emitter Breakdown Voltage : V(BR)CEO= -30V(Min). Good Linearity of hFE. Complement to Type 2SC3230. Minimum Lot-to-Lot vari.

2SA1276 Applications

* Designed for general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -30 V VCEO Collector-Emitter Voltage -30 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -3 A IE Emitter Current-Continuous

📥 Download Datasheet

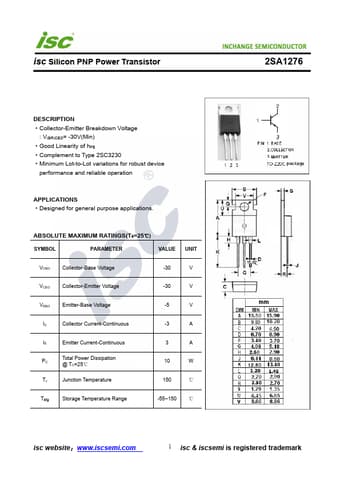

Preview of 2SA1276 PDF
datasheet Preview Page 2
