2SA1491 - POWER TRANSISTOR

The 2SA1491 by Inchange Semiconductor is a POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

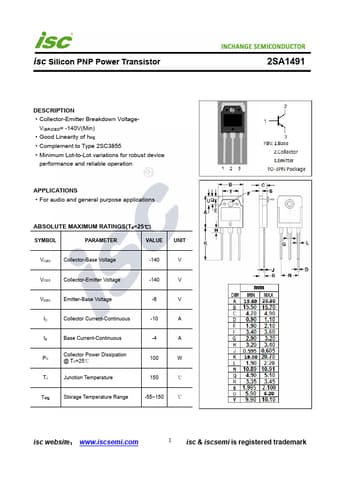

Official preview page of the 2SA1491 POWER TRANSISTOR datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SA1491
Manufacturer Inchange Semiconductor
File Size 219.08 KB
Description POWER TRANSISTOR
Datasheet download datasheet 2SA1491_InchangeSemiconductor.pdf
Additional preview pages of the 2SA1491 datasheet.

2SA1491 Product details

Description

Collector-Emitter Breakdown Voltage- V(BR)CEO= -140V(Min) Good Linearity of hFE Complement to Type 2SC3855 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS For audio and general purpose applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -140 V VCEO Collector-Emitter Voltage -140 V VEBO Emitter-Base Voltage -6 V IC Collector Current-Continuous -10 A IB
