2SA1492 POWER TRANSISTOR

2SA1492 Description

isc Silicon PNP Power Transistor .
High Collector-Emitter Breakdown Voltage- V(BR)CEO= -180V(Min). Good Linearity of hFE. Complement to Type 2SC3856. Minimum Lot-to-Lot.

2SA1492 Applications

* For audio and general purpose applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -180 V VCEO Collector-Emitter Voltage -180 V VEBO Emitter-Base Voltage -6 V IC Collector Current-Continuous -15 A IB Base Current-Continuous

📥 Download Datasheet

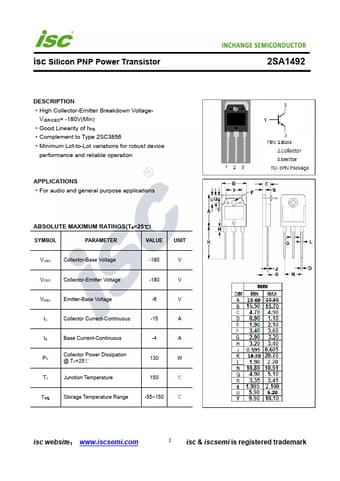

Preview of 2SA1492 PDF
datasheet Preview Page 2
