2SA1494 - POWER TRANSISTOR

Product Overview

📥 Download Datasheet

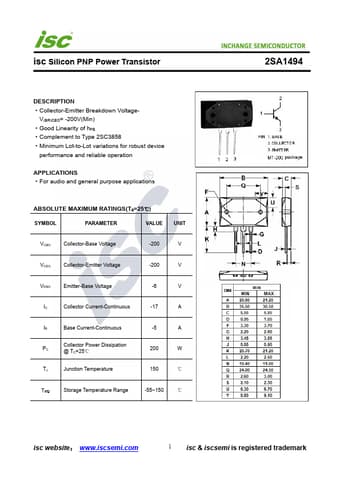

Datasheet preview – 2SA1494

Datasheet Details

Part number 2SA1494
Manufacturer Inchange Semiconductor
File Size 218.29 KB
Description POWER TRANSISTOR
Datasheet download datasheet 2SA1494 Datasheet
Additional preview pages of the 2SA1494 datasheet.

Product details

Description

Collector-Emitter Breakdown Voltage- V(BR)CEO= -200V(Min) Good Linearity of hFE Complement to Type 2SC3858 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS For audio and general purpose applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -200 V VCEO Collector-Emitter Voltage -200 V VEBO Emitter-Base Voltage -6 V IC Collector Current-Continuous -17 A IB
