D1918 - Silicon NPN Power Transistor

D1918 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SD1918 .
Suitable for middle power drivers. High voltage:VCEO=160V. Complementary PNP types:2SB1275. 100% avalanche tested. Minimum Lot-to.

D1918 Applications

* Motor drivers,LED driver,Power supply ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 160 V VCEO Collector-Emitter Voltage 160 V VEBO Emitter-Base Voltage 5V IC Collector Current-Continuous 1.5 A ICM Collector Current-Peak PC Collector

📥 Download Datasheet

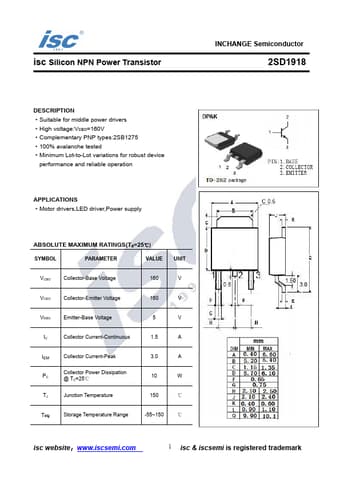

Preview of D1918 PDF
datasheet Preview Page 2

Datasheet Details

Part number
D1918
Manufacturer
Inchange Semiconductor
File Size
223.14 KB
Datasheet
D1918-InchangeSemiconductor.pdf
Description
Silicon NPN Power Transistor
