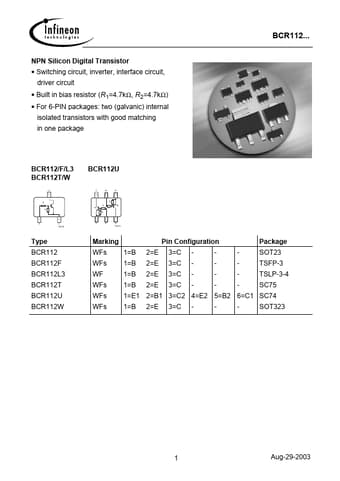

BCR112...
NPN Silicon Digital Transistor • Switching circuit, inverter, interface circuit, driver circuit • Built in bias resistor (R1=4.7kΩ, R2=4.7kΩ) • For 6-PIN packages: two (galvanic) internal isolated transistors with good matching in one package
BCR112/F/L3 BCR112T/W
C 3
BCR112U
C1 6
B2 5
E2 4
R1
R1
R2 TR2 R1 R2 TR1
R2
1 B
2 E
EHA07184
1 E1
2 B1
3 C2
EHA07174
Type
Marking
Pin Configuration
Package
BCR112 BCR112F BCR112L3 BCR112T BCR112U BCR112W
WFs WFs WF WFs WFs WFs
1=B 1=B 1=B 1=B 1=B
2=E 2=E 2=E 2=E 2=E
3=C 3=C 3=C 3=C 3=C
-
-
-
SOT23 TSFP-3 TSLP-3-4 SC75 SOT323
1=E1 2=B1 3=C2 4=E2 5=B2 6=C1 SC74
1
Aug-29-2003
BCR112...
