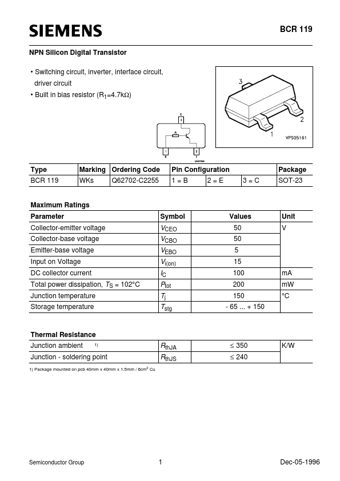

BCR 119
NPN Silicon Digital Transistor • Switching circuit, inverter, interface circuit, driver circuit • Built in bias resistor (R1=4.7kΩ)
Type BCR 119
Marking Ordering Code WKs Q62702-C2255
Pin Configuration 1=B 2=E 3=C
Package SOT-23
Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Input on Voltage DC collector current Total power dissipation, TS = 102°C Junction temperature Storage temperature Symbol Values 50 50 5 15 100 200 150 - 65 ... + 150 mA mW °C Unit V
VCEO VCBO VEBO Vi(on) IC Ptot Tj Tstg
Thermal Resistance Junction ambient
1)
RthJA RthJS
≤ 350 ≤ 240
K/W
Junction - soldering point
1) Package mounted on pcb 40mm x 40mm x 1.
