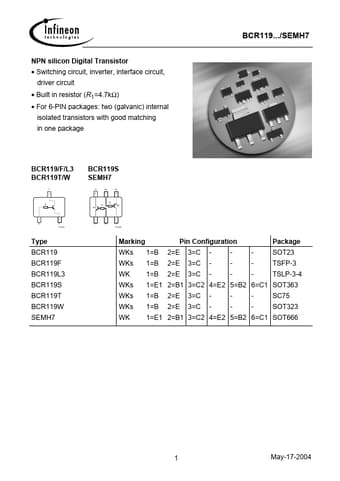

BCR119.../SEMH7
NPN silicon Digital Transistor • Switching circuit, inverter, interface circuit, driver circuit • Built in resistor (R1=4.7kΩ) • For 6-PIN packages: two (galvanic) internal isolated transistors with good matching in one package
BCR119/F/L3 BCR119T/W
C 3
BCR119S SEMH7
C1 6 B2 5 E2 4
R1
R1 TR1
R1 TR2
1 B
2 E
EHA07264
1 E1
2 B1
3 C2
EHA07265
Type BCR119 BCR119F BCR119L3 BCR119S BCR119T BCR119W SEMH7
Marking WKs WKs WK WKs WKs WKs WK 1=B 1=B 1=B 1=B 1=B
Pin Configuration 2=E 2=E 2=E 2=E 2=E 3=C 3=C 3=C 3=C 3=C -
Package SOT23 TSFP-3 TSLP-3-4 SC75 SOT323
1=E1 2=B1 3=C2 4=E2 5=B2 6=C1 SOT363
1=E1 2=B1 3=C2 4=E2 5=B2 6=C1 SOT666
1
May-17-2004
BCR119...
