BCR114 Datasheet - Infineon Technologies AG

BCR114 NPN Silicon Digital Transistor

BCR114 NPN Silicon Digital Transistor Switching circuit, inverter, interface circuit, driver circuit Built in bias resistor (R1 =4.7kΩ, R2 =10kΩ) BCR114/F BCR114L3/T C 3 R1 R2 1 B 2 E EHA07184 Type BCR114 BCR114F BCR114L3 BCR114T Marking U4s U4s U4 U4s 1=B 1=B 1=B 1=B 2=E 2=E 2=E 2=E Pin Configuration 3=C 3=C 3=C 3=C - Package SOT23 TSFP-3 TSLP-3-4 SC75 1 Aug-29-2003 BCR114 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base volt.

BCR114_InfineonTechnologiesAG.pdf

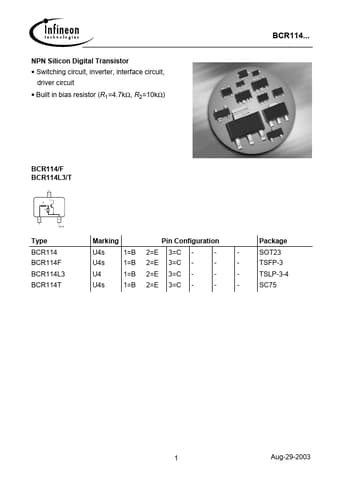

Preview of BCR114 PDF
BCR114 Datasheet Preview Page 2 BCR114 Datasheet Preview Page 3

Datasheet Details

Part number:

BCR114

Manufacturer:

Infineon ↗ Technologies AG

File Size:

184.88 KB

Description:

Npn silicon digital transistor.
