IPB05N03LA

OptiMOS 2 Power-Transistor

IPB05N03LA Features

* Ideal for high-frequency dc/dc converters

* N-channel

* Logic level

* Excellent gate charge x R DS(on) product (FOM)

* Very low on-resistance R DS(on)

* Superior thermal resistance

* 175 °C operating temperature

* dv /dt rated P-TO263

IPB05N03LA General Description

and charts started herein. Infineon Technologies is an approved CECC manufacturer. Information For further information on technology, delivery terms and conditions and prices, please contact your nearest Infineon Technologies office in Germany or our Infineon Technologies representatives worldwide .

IPB05N03LA Datasheet (348.04 KB)

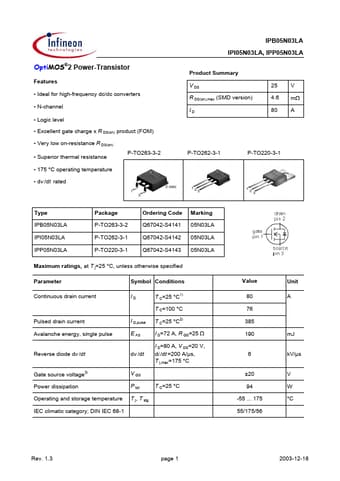

Preview of IPB05N03LA PDF

Datasheet Details

Part number:

IPB05N03LA

Manufacturer:

Infineon ↗ Technologies AG

File Size:

348.04 KB

Description:

Optimos 2 power-transistor.
