IPD05N03LBG, IPD05N03LB, OptiMOS2 Power-Transistor

www.DataSheet4U.net IPD05N03LB G OptiMOS®2 Power-Transistor .
and charts stated herein.

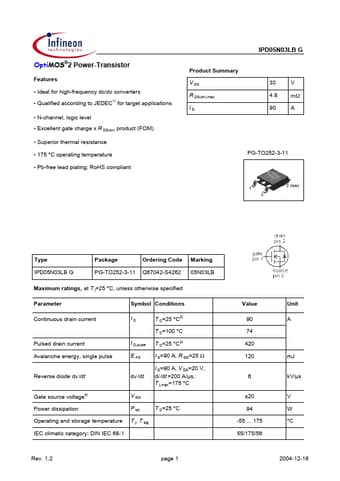

datasheet Preview Page 1 from Datasheet4u.com

IPD05N03LB_InfineonTechnologies.pdf

IPD05N03LBG Datasheet Preview — This datasheet PDF includes multiple part numbers: IPD05N03LBG, IPD05N03LB. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IPD05N03LBG, IPD05N03LB

Manufacturer:

Infineon ↗ Technologies

File Size:

335.16 KB

Description:

OptiMOS2 Power-Transistor

Note:

This datasheet PDF includes multiple part numbers: IPD05N03LBG, IPD05N03LB.
Please refer to the document for exact specifications by model.

Features

* Ideal for high-frequency dc/dc converters

Applications

* N-channel, logic level
* Excellent gate charge x R DS(on) product (FOM)
* Superior thermal resistance
* 175 °C operating temperature
* Pb-free lead plating; RoHS compliant 1) Product Summary V DS R DS(on),max ID 30 4.8 90 V mΩ A PG-TO252-3-11 Type IPD05N0
