BSC016N06NSSC Datasheet - Infineon

BSC016N06NSSC, 60V MOSFET

BSC016N06NSSC MOSFET OptiMOSTM Power-MOSFET, 60 V .

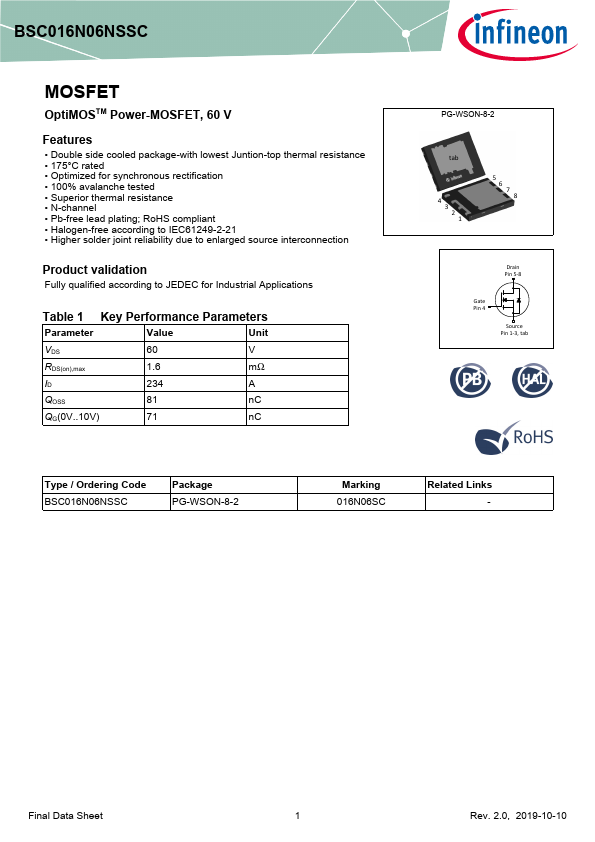

datasheet Preview Page 1 from Datasheet4u.com

BSC016N06NSSC-Infineon.pdf

BSC016N06NSSC Datasheet Preview — Preview of BSC016N06NSSC PDF

Datasheet Details

Part number:

BSC016N06NSSC

Manufacturer:

Infineon ↗

File Size:

0.97 MB

Description:

60V MOSFET

Features

* Double side cooled package-with lowest Juntion-top thermal resistance
* 175°C rated
* Optimized for synchronous rectification
* 100% avalanche tested
* Superior thermal resistance
* N-channel
* Pb-free lead plating; RoHS compliant
* H

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 60 V RDS(on),max 1.6 mΩ ID 234 A QOSS 81 nC QG(0V. .10V) 71 nC PG-WSON-8-2 tab 4 3 2 1 5 6 7 8 Drain Pin 5-8 Gate Pin 4 Source Pin 1-3, tab Type / Ordering Code BSC016N06NSSC Package PG-WSON-8-2 Marking 016N06SC
