BSS306N - Small-Signal-Transistor

BSS306N Description

BSS306N OptiMOS™2 Small-Signal-Transistor .

BSS306N Features

* N-channel
* Enhancement mode
* Logic level (4.5V rated)
* Avalanche rated
* Qualified according to AEC Q101
* 100% lead-free; RoHS compliant Product Summary V DS R DS(on),max V GS=10 V V GS=4.5 V ID 30 57 93 2.3 A V mΩ PG-SOT23 3 1 2 Type BSS306N

📥 Download Datasheet

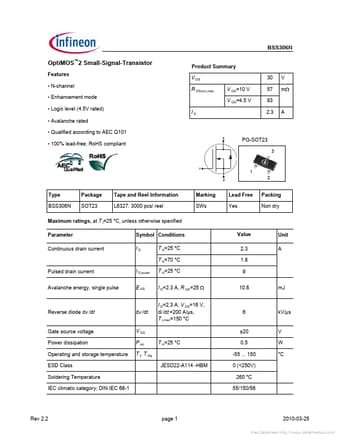

Preview of BSS306N PDF
datasheet Preview Page 2 datasheet Preview Page 3
