BSS316N Small-Signal-Transistor

BSS316N Description

BSS316N OptiMOS™2 Small-Signal-Transistor .

BSS316N Features

* N-channel
* Enhancement mode
* Logic level (4.5V rated)
* Avalanche rated
* Qualified according to AEC Q101
* 100%lead-free; RoHS compliant Product Summary V DS R DS(on),max V GS=10 V V GS=4.5 V ID 30 160 280 1.4 A V mΩ PG-SOT23 3 1 2 Type BSS316

📥 Download Datasheet

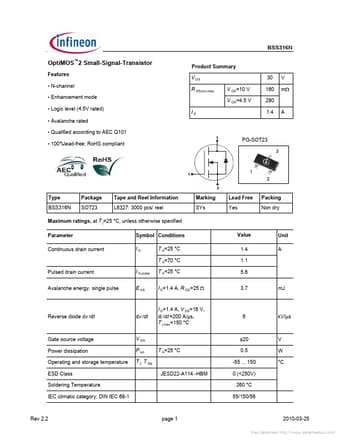

Preview of BSS316N PDF
datasheet Preview Page 2 datasheet Preview Page 3
