BSS314PE - Small-Signal-Transistor

Product Overview

Infineon

Part number	BSS314PE
Manufacturer	Infineon
File Size	265.16 KB
Description	Small-Signal-Transistor
Datasheet	BSS314PE Datasheet

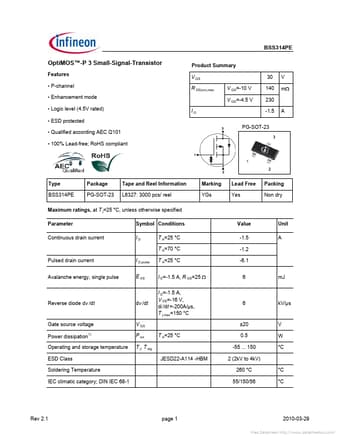

Additional preview pages of the BSS314PE datasheet.

P-channel.
Enhancement mode.
Logic level (4.5V rated).
ESD protected.
Qualified according AEC Q101.
100% Lead-free; RoHS compliant Product Summary V DS R DS(on),max V GS=-10 V V GS=-4.5 V ID 30 140 230 -1.5 PG-SOT-23 3 V mΩ A 11 2 3 2 Type BSS314PE Package PG-SOT-23 Tape and Reel Information L6327: 3000 pcs/ reel Marking YGs Lead Free Yes Packing Non dry Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Continu.
