BSS83I - -60V Small Signal MOSFET

BSS83I Description

Public BSS83I Final datasheet MOSFET Small Signal MOSFET, ‑60 V .
1 Maxi.

BSS83I Features

* P‑channel
* Very low on‑resistance RDS(on)
* Superior thermal resistance
* 100% avalanche tested
* Pb‑free lead plating; RoHS compliant
* Halogen‑free according to IEC61249‑2‑21
* Logic level Product validation Fully qualified according to JE

BSS83I Applications

* Table 1 Parameter VDS RDS(on),max ID Qoss QG Key performance parameters Value Unit ‑60 V 1700 mΩ ‑0.55 A ‑0.6 nC ‑0.87 nC Part number BSS83I Package PG‑SOT23‑3 PG‑SOT23‑3 3 1 2 Gate Pin 1 Drain Pin 3 Source Pin 2 Marking YJ Related links ‑ Datasheet https://www. infineon. com

📥 Download Datasheet

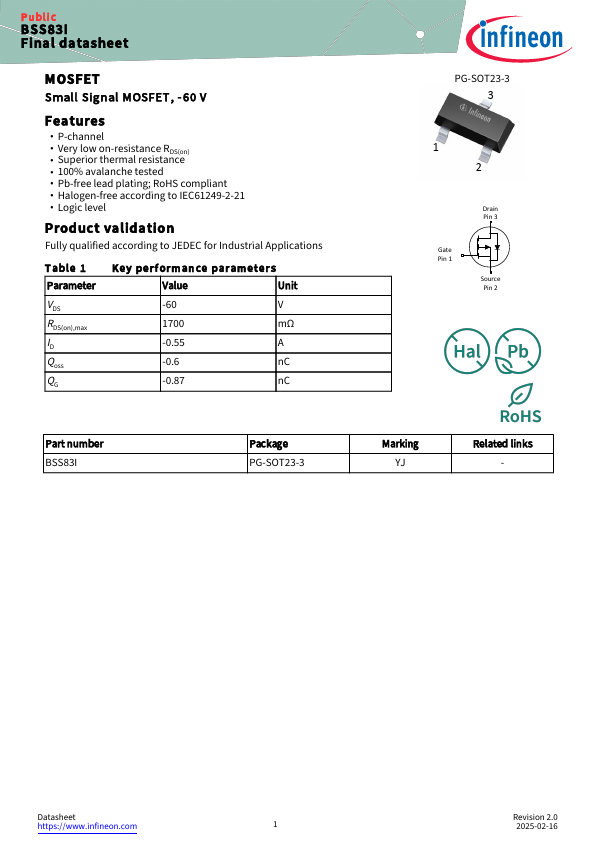

Preview of BSS83I PDF

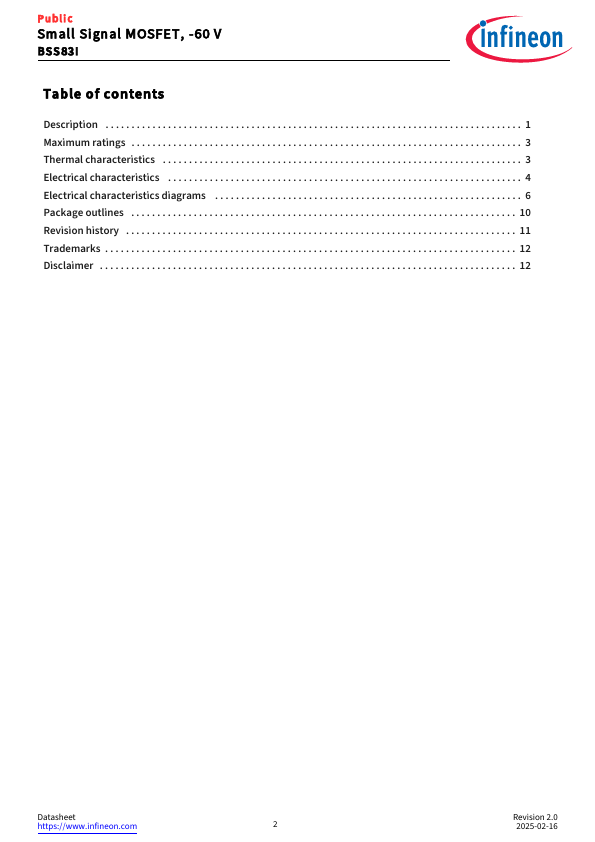

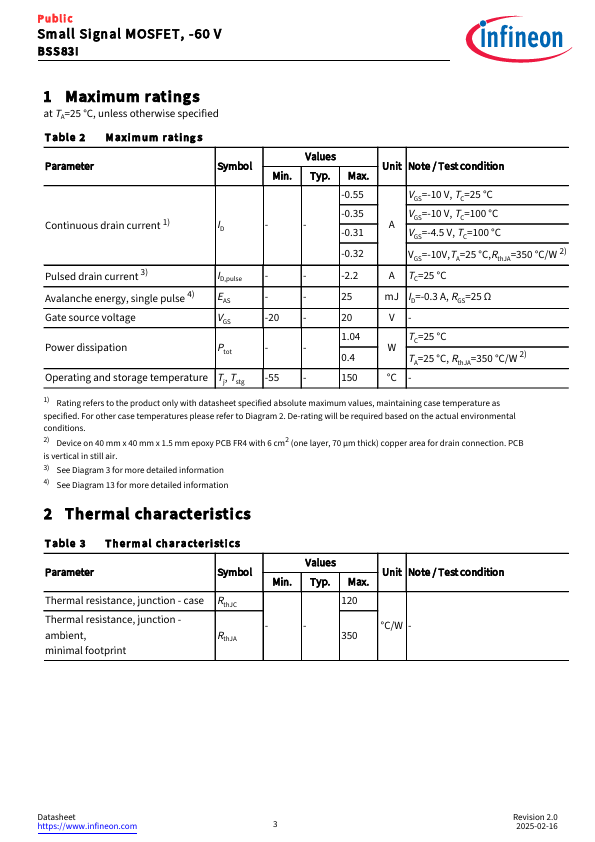

datasheet Preview Page 2 datasheet Preview Page 3
