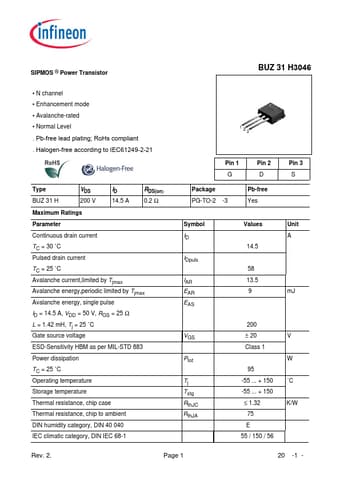

SIPMOS ® Power Transistor
BUZ 31 H3046
• N channel • Enhancement mode • Avalanche-rated • Normal Level . Pb-free lead plating; RoHs compliant . Halogen-free according to IEC61249-2-21
Type
VDS
BUZ 31 H3046 200 V
ID 14.5 A
RDS(on)
0.2 Ω
Maximum Ratings
Parameter
Continuous drain current
TC = 30 ˚C Pulsed drain current
TC = 25 ˚C Avalanche current,limited by Tjmax Avalanche energy,periodic limited by Tjmax Avalanche energy, single pulse
ID = 14.5 A, VDD = 50 V, RGS = 25 Ω
L = 1.
