BUZ31 Datasheet - Siemens Semiconductor Group

BUZ31 Power Transistor

BUZ 31 SIPMOS ® Power Transistor N channel Enhancement mode Avalanche-rated Pin 1 G Pin 2 D Pin 3 S Type BUZ 31 VDS 200 V ID 14.5 A RDS(on) 0.2 Ω Package TO-220 AB Ordering Code C67078-S.1304-A2 Maximum Ratings Parameter Continuous drain current Symbol Values 14.5 Unit A ID IDpuls 58 TC = 30 °C Pulsed drain current TC = 25 °C Avalanche current,limited by Tjmax Avalanche energy,periodic limited by Tjmax Avalanche energy, single pulse IAR EAR EAS 14.5.

BUZ31_SiemensSemiconductorGroup.pdf

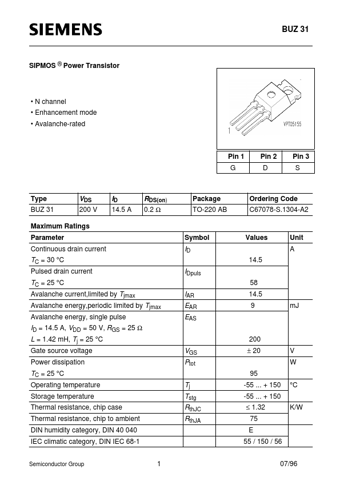

Preview of BUZ31 PDF
BUZ31 Datasheet Preview Page 2 BUZ31 Datasheet Preview Page 3

Datasheet Details

Part number:

BUZ31

Manufacturer:

Siemens Semiconductor Group

File Size:

197.30 KB

Description:

Power transistor.
