BUZ30AH3045A - N-Channel MOSFET

Datasheet Summary

Features

With TO-263( D²PAK ) packaging.
High speed switching.
Low gate input resistance.
Standard level gate drive.
Easy to use.
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.

INCHANGE

📥 Download Datasheet

Datasheet Details

Part number	BUZ30AH3045A
Manufacturer	INCHANGE
File Size	225.08 KB
Description	N-Channel MOSFET
Datasheet	BUZ30AH3045A Datasheet
Additional preview pages of the BUZ30AH3045A datasheet.

📁 Similar Datasheet

BUZ30AH - Power Transistor (Infineon)
BUZ30A - Power Transistor (Siemens Semiconductor Group)
BUZ30A - Power Transistor (Infineon Technologies AG)
BUZ305 - Power Transistor (Siemens Semiconductor Group)
BUZ305 - N-Channel MOSFET Transistor (Inchange Semiconductor)
BUZ307 - Power Transistor (Siemens Semiconductor Group)
BUZ307 - N-Channel MOSFET Transistor (Inchange Semiconductor)
BUZ308 - Power Transistor (Siemens Semiconductor Group)
BUZ308 - N-Channel MOSFET Transistor (Inchange Semiconductor)
BUZ31 - Power Transistor (Siemens Semiconductor Group)

Other Datasheets by INCHANGE

BUZ30AH - N-Channel MOSFET
BUZ30A - N-Channel MOSFET
BUZ31 - N-Channel MOSFET
BUZ31H3046 - N-Channel MOSFET
BUZ32 - N-Channel MOSFET
BUZ34 - N-Channel MOSFET
BUZ35 - N-Channel MOSFET
BUZ36 - N-Channel MOSFET

Full PDF Text Transcription

Click to expand full text

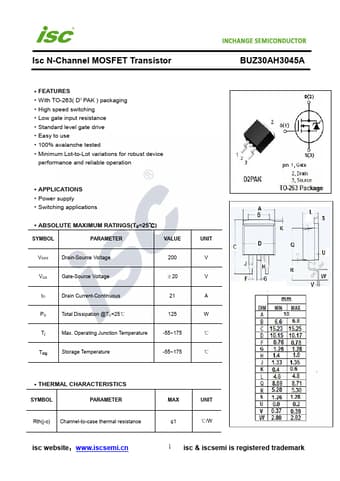

Isc N-Channel MOSFET Transistor ·FEATURES ·With TO-263( D²PAK ) packaging ·High speed switching ·Low gate input resistance ·Standard level gate drive ·Easy to use ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ·APPLICATIONS ·Power supply ·Switching applications ·ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 200 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 21 PD Total Dissipation @TC=25℃ 125 Tj Max. Operating Junction Temperature -55~175 Tstg Storage Temperature -55~175 UNIT V V A W ℃ ℃ BUZ30AH3045A ·THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth(j-c) Channel-to-case thermal resistance isc website：www.iscsemi.
