BUZ30AH - Power Transistor

Infineon

Datasheet Details

Part number	BUZ30AH
Manufacturer	Infineon
File Size	430.62 KB
Description	Power Transistor
Datasheet	BUZ30AH Datasheet
Additional preview pages of the BUZ30AH datasheet.

📁 Similar Datasheet

BUZ30AH - N-Channel MOSFET (INCHANGE)
BUZ30AH3045A - N-Channel MOSFET (INCHANGE)
BUZ30A - Power Transistor (Siemens Semiconductor Group)
BUZ30A - Power Transistor (Infineon Technologies AG)
BUZ30A - N-Channel MOSFET (INCHANGE)
BUZ305 - Power Transistor (Siemens Semiconductor Group)
BUZ305 - N-Channel MOSFET Transistor (Inchange Semiconductor)
BUZ307 - Power Transistor (Siemens Semiconductor Group)
BUZ307 - N-Channel MOSFET Transistor (Inchange Semiconductor)
BUZ308 - Power Transistor (Siemens Semiconductor Group)

Other Datasheets by Infineon

BUZ31H - Power-Transistor
BUZ31H3045A - Power-Transistor
BUZ31H3046 - Power-Transistor
BUZ102S - Power Transistor
BUZ103S - SIPMOS Power Transistor
BUZ73LH - Power Transistor
BUZ80A - Power Transistor

Full PDF Text Transcription

Click to expand full text

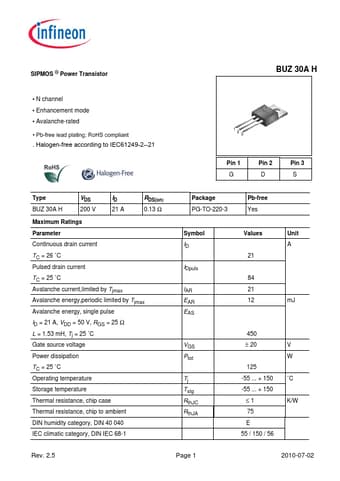

SIPMOS ® Power Transistor BUZ 30A H • N channel • Enhancement mode • Avalanche-rated . Halogen-free according to IEC61249-2--21 Pin 1 G Pin 2 D Pin 3 S Type BUZ 30A H VDS 200 V ID 21 A RDS(on) 0.13 Ω Maximum Ratings Parameter Continuous drain current TC = 26 ˚C Pulsed drain current TC = 25 ˚C Avalanche current,limited by Tjmax Avalanche energy,periodic limited by Tjmax Avalanche energy, single pulse ID = 21 A, VDD = 50 V, RGS = 25 Ω L = 1.
