BUZ307 - Power Transistor

📥 Download Datasheet

Datasheet preview – BUZ307

Datasheet Details

Part number BUZ307
Manufacturer Siemens Semiconductor Group
File Size 212.35 KB
Description Power Transistor
Datasheet download datasheet BUZ307 Datasheet
Additional preview pages of the BUZ307 datasheet.

📁 Similar Datasheet

  • BUZ307 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • BUZ305 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • BUZ308 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • BUZ30A - Power Transistor (Infineon Technologies AG)
  • BUZ30A - N-Channel MOSFET (INCHANGE)
  • BUZ30AH - Power Transistor (Infineon)
  • BUZ30AH - N-Channel MOSFET (INCHANGE)
  • BUZ30AH3045A - N-Channel MOSFET (INCHANGE)
  • BUZ31 - Power Transistor (Infineon Technologies AG)
  • BUZ31 - Power MOS Transistors (Comset Semiconductors)
Other Datasheets by Siemens Semiconductor Group

Full PDF Text Transcription

Click to expand full text

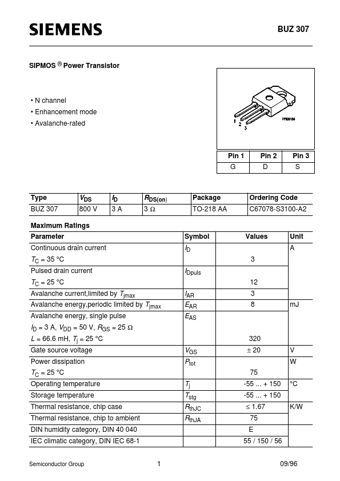

BUZ 307 SIPMOS ® Power Transistor • N channel • Enhancement mode • Avalanche-rated Pin 1 G Pin 2 D Pin 3 S Type BUZ 307 VDS 800 V ID 3A RDS(on) 3Ω Package TO-218 AA Ordering Code C67078-S3100-A2 Maximum Ratings Parameter Continuous drain current Symbol Values 3 Unit A ID IDpuls 12 TC = 35 °C Pulsed drain current TC = 25 °C Avalanche current,limited by Tjmax Avalanche energy,periodic limited by Tjmax Avalanche energy, single pulse IAR EAR EAS 3 8 mJ ID = 3 A, VDD = 50 V, RGS = 25 Ω L = 66.
