FP50R12KT4G - IGBT

FP50R12KT4G Description

Technische Information / Technical Information IGBT-Module IGBT-modules FP50R12KT4G EconoPIM™3 Modul mit schnellem Trench/Feldstopp IGBT4 und Emitt.

FP50R12KT4G Features

* Low Switching Losses
* Low VCEsat
* Trench IGBT 4
* Tvj op = 150°C
* VCEsat with positive Temperature Coefficient Mechanical Features
* Al2O3 Substrate with Low Thermal Resistance
* High Power and Thermal Cycling Capability
* Integra

FP50R12KT4G Applications

* Auxiliary Inverters
* Motor Drives

📥 Download Datasheet

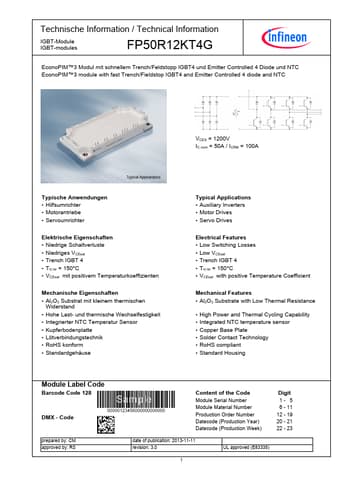

Preview of FP50R12KT4G PDF
datasheet Preview Page 2 datasheet Preview Page 3
