FP50R12KT4P - IGBT

FP50R12KT4P Description

FP50R12KT4P EconoPIM™2 Modul mit Trench/Feldstopp IGBT4 und Emitter Controlled 4 Diode und NTC / bereits aufgetragenem Thermal Interface Material Econ.

FP50R12KT4P Features

* Extended operating temperature Tvj op
* Low switching losses
* Tvj op = 150°C
* Trench IGBT 4 Mechanical Features
* High power and thermal cycling capability
* Integrated NTC temperature sensor
* Isolated base plate
* Copper base plat

FP50R12KT4P Applications

* Motor drives

📥 Download Datasheet

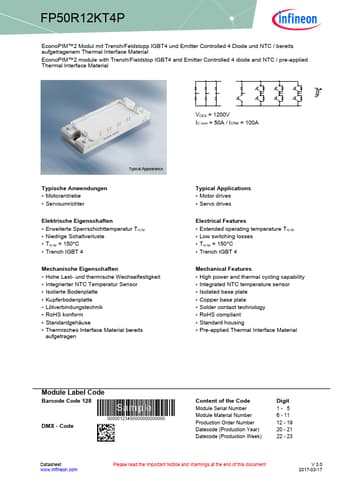

Preview of FP50R12KT4P PDF
datasheet Preview Page 2 datasheet Preview Page 3
