FP50R12KT4_B11 - IGBT-Module

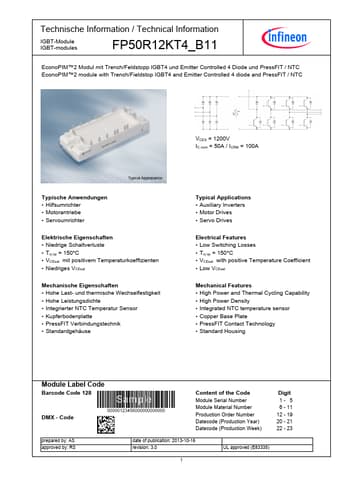

Technische Information / Technical Information IGBT-Module IGBT-modules FP50R12KT4_B11 EconoPIM™2 Modul mit Trench/Feldstopp IGBT4 und Emitter Controlled 4 Diode und PressFIT / NTC EconoPIM™2 module with Trench/Fieldstop IGBT4 and Emitter Controlled 4 diode and PressFIT / NTC VCES = 1200V IC nom = 50A / ICRM = 100A Typische Anwendungen Hilfsumrichter Motorantriebe Servoumrichter Elektrische Eigenschaften Niedrige Schaltverluste Tvj op = 150°

FP50R12KT4_B11 Features

* Low Switching Losses

* Tvj op = 150°C

* VCEsat with positive Temperature Coefficient

* Low VCEsat Mechanical Features

* High
