IGB10N60T, IGBT

IGB10N60T TRENCHSTOP™ Series p Low Loss IGBT : IGBT in TRENCHSTOP™ and Fieldstop technology .

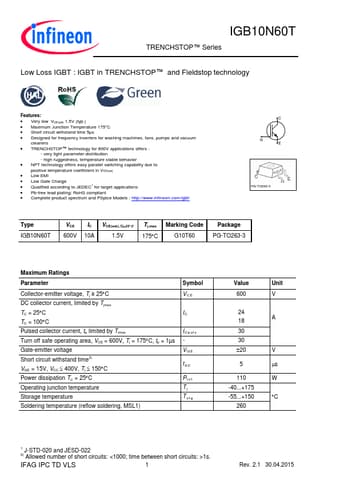

datasheet Preview Page 1 from Datasheet4u.com

IGB10N60T-Infineon.pdf

IGB10N60T Datasheet Preview — Preview of IGB10N60T PDF

Datasheet Details

Part number:

IGB10N60T

Manufacturer:

Infineon ↗

File Size:

586.09 KB

Description:

IGBT

Features

* Very low VCE(sat) 1.5V (typ. )
* Maximum Junction Temperature 175°C
* Short circuit withstand time 5s
* Designed for frequency inverters for washing machines, fans, pumps and vacuum cleaners

Applications

* offers : - very tight parameter distribution - high ruggedness, temperature stable behavior
* NPT technology offers easy parallel switching capability due to positive temperature coefficient in VCE(sat)
* Low EMI
* Low Gate Charge
* Qualified according to JEDEC1 for target applicatio
