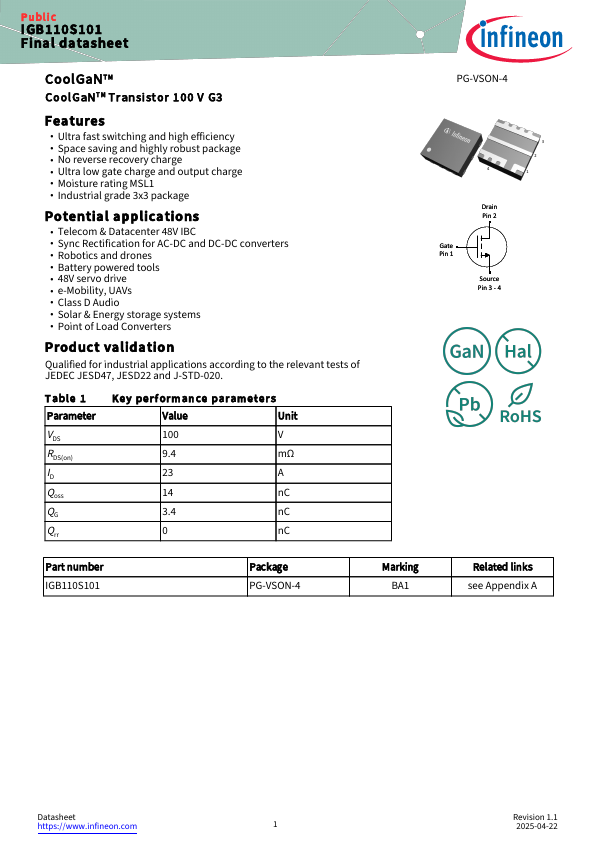

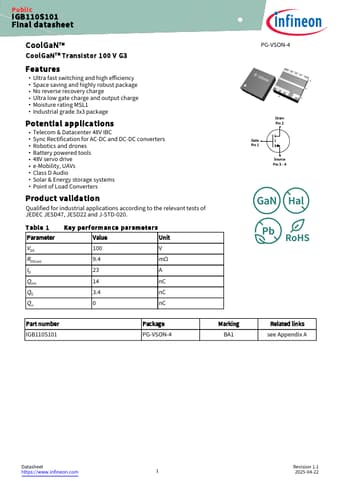

IGB110S101 Final datasheet
CoolGaNTM
CoolGaNTM Transistor 100 V G3
Features
• Ultra fast switching and high efficiency • Space saving and highly robust package • No reverse recovery charge • Ultra low gate charge and output charge • Moisture rating MSL1 • Industrial grade 3x3 package
Potential applications
• Telecom & Datacenter 48V IBC • Sync Rectification for AC‑DC and DC‑DC converters • Robotics and drones • Battery powered tools • 48V servo drive • e‑Mobility, UAVs • Class D Audio • Solar & Energy storage systems • Point of Load Converters
Product validation
Qualified for industrial applications according to the relevant tests of JEDEC JESD47, JESD22 and J‑STD‑020.
Table 1 Parameter VDS RDS(on) ID Qoss QG Qrr
Key performance parameters
Value
Unit
100
V
9.
