IMBG120R022M2H, 1200V SiC MOSFET

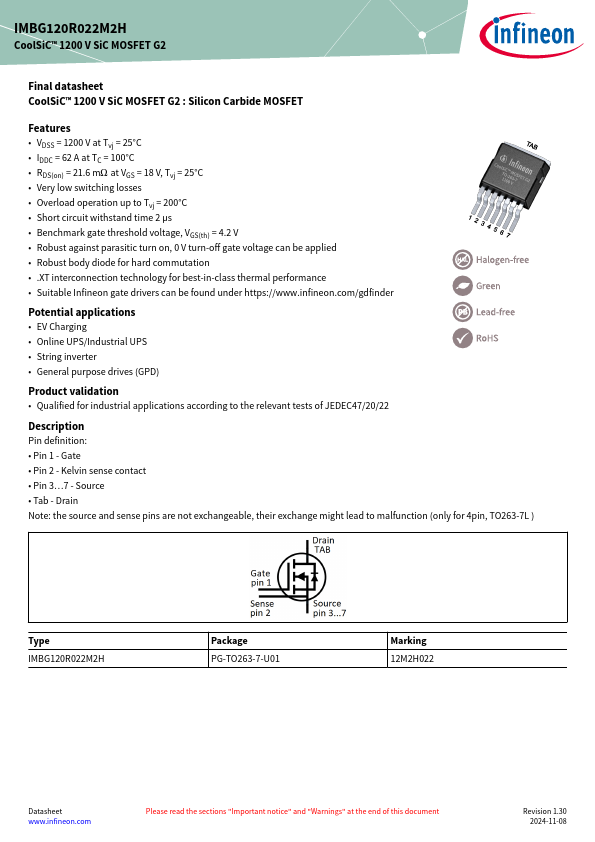

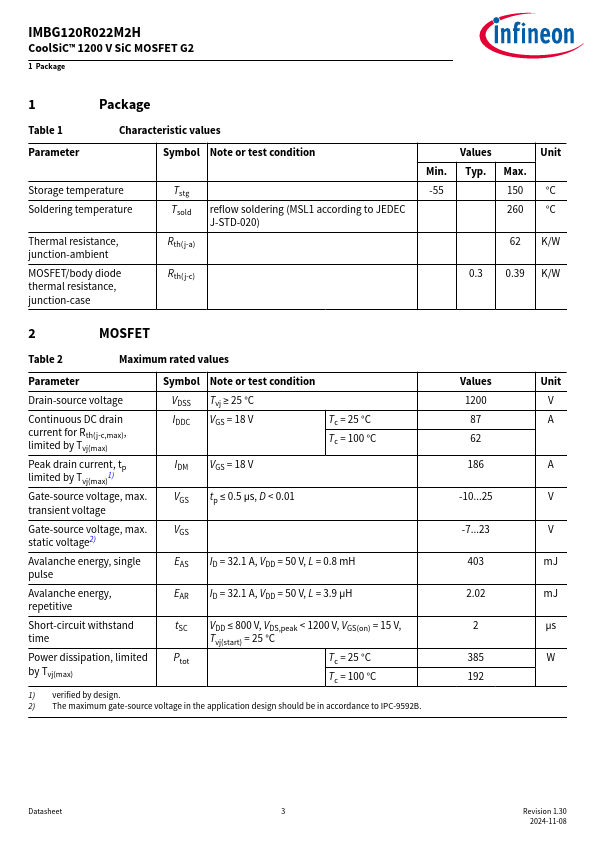

IMBG120R022M2H CoolSiC™ 1200 V SiC MOSFET G2 Final datasheet CoolSiC™ 1200 V SiC MOSFET G2 : Silicon Carbide MOSFET .
Pin definition:. Pin 1 - Gate. Pin 2 - Kelvin sense contact. Pin 3…7 - Source. Tab - Drain Note: the source and se.

datasheet Preview Page 1 from Datasheet4u.com

IMBG120R022M2H-Infineon.pdf

IMBG120R022M2H Datasheet Preview — Preview of IMBG120R022M2H PDF

Datasheet Details

Part number:

IMBG120R022M2H

Manufacturer:

Infineon ↗

File Size:

1.24 MB

Description:

1200V SiC MOSFET

Features

* VDSS = 1200 V at Tvj = 25°C
* IDDC = 62 A at TC = 100°C
* RDS(on) = 21.6 mΩ at VGS = 18 V, Tvj = 25°C
* Very low switching losses
* Overload operation up to Tvj = 200°C
* Short circuit withstand time 2 µs
* Benchmark gate threshold voltage

Applications

* EV Charging
* Online UPS/Industrial UPS
* String inverter
* General purpose drives (GPD) Product validation
