IMBG120R030M1H - 1200V SiC Trench MOSFET

IMBG120R030M1H Description

IMBG120R030M1H IMBG120R030M1H CoolSiC™ 1200V SiC Trench MOSFET with .XT interconnection technology .

IMBG120R030M1H Features

* Very low switching losses
* Short circuit withstand time 3 µs
* Fully controllable dV/dt
* Benchmark gate threshold voltage, VGS(th) = 4.5V
* Robust against parasitic turn on, 0V turn-off gate voltage can be applied
* Robust body diode for hard commutation
* . XT interco

IMBG120R030M1H Applications

* Drives
* Infrastructure
* Charger
* Energy generation - Solar string inverter and solar optimizer
* Industrial power supplies - Industrial UPS Gate pin 1 Sense pin 2 Drain TAB Source pin 37 Product validation Qualified for industrial applications according to the relevan

📥 Download Datasheet

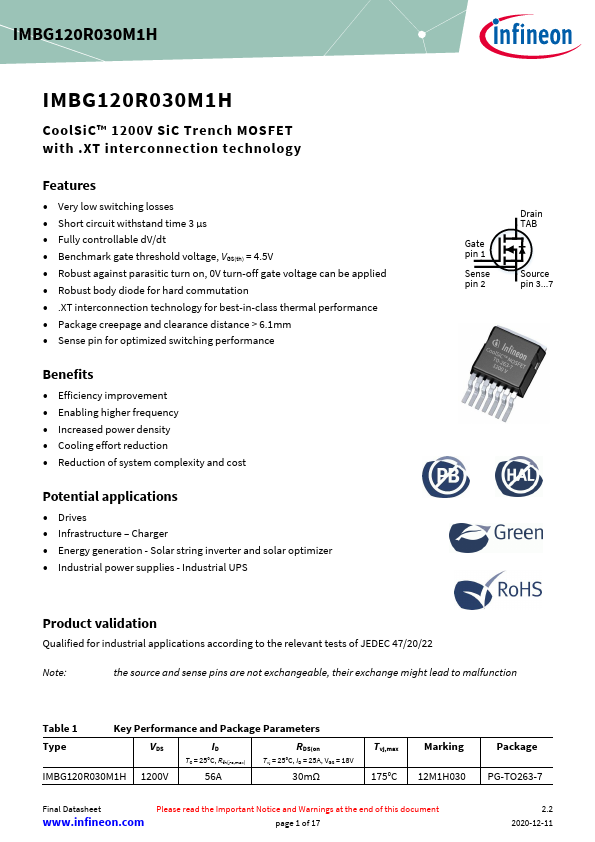

Preview of IMBG120R030M1H PDF

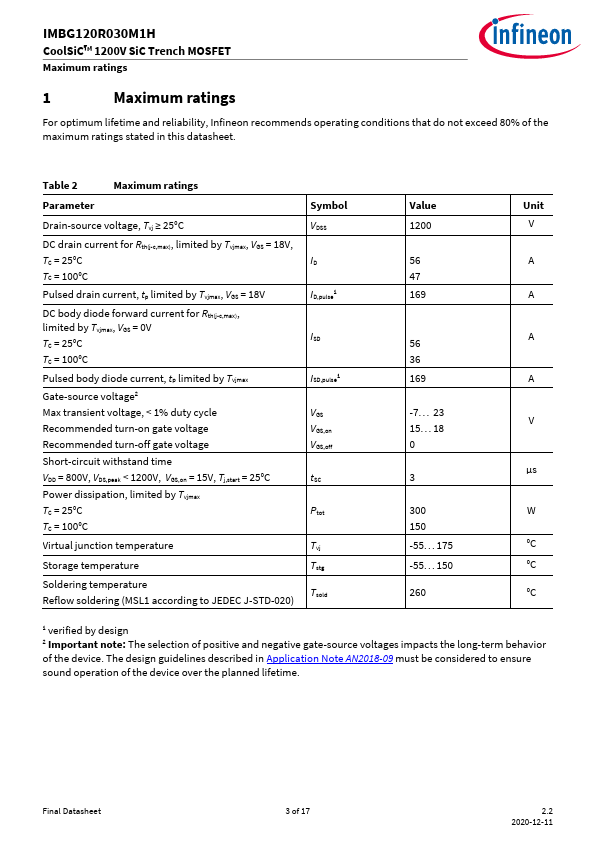

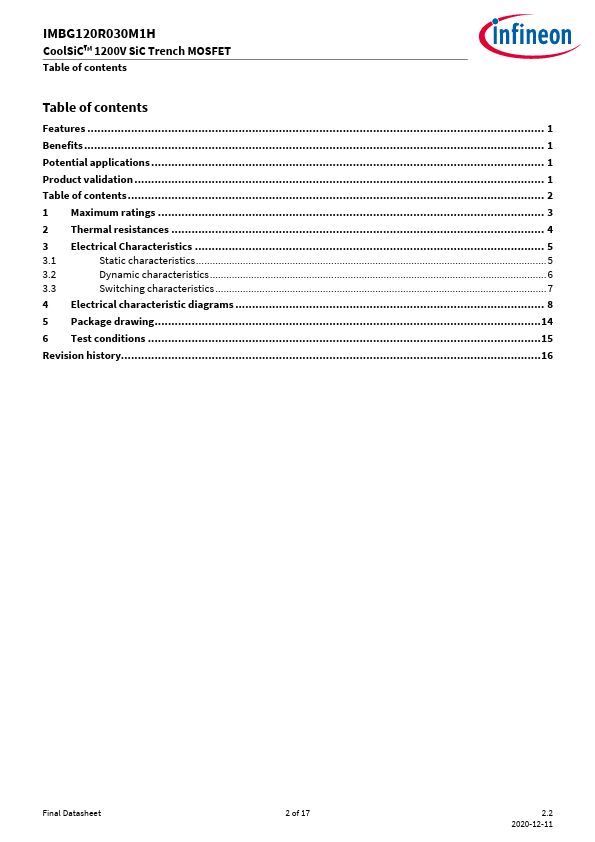

datasheet Preview Page 2 datasheet Preview Page 3
