IMWH170R650M1 - 1700V SiC Trench MOSFET

Infineon

IMWH170R650M1 Datasheet Preview — Preview of IMWH170R650M1 PDF

Datasheet Details

Part number	IMWH170R650M1
Manufacturer	Infineon ↗
File Size	1.55 MB
Description	1700V SiC Trench MOSFET
Datasheet	IMWH170R650M1-Infineon.pdf

IMWH170R650M1 Product details

Description

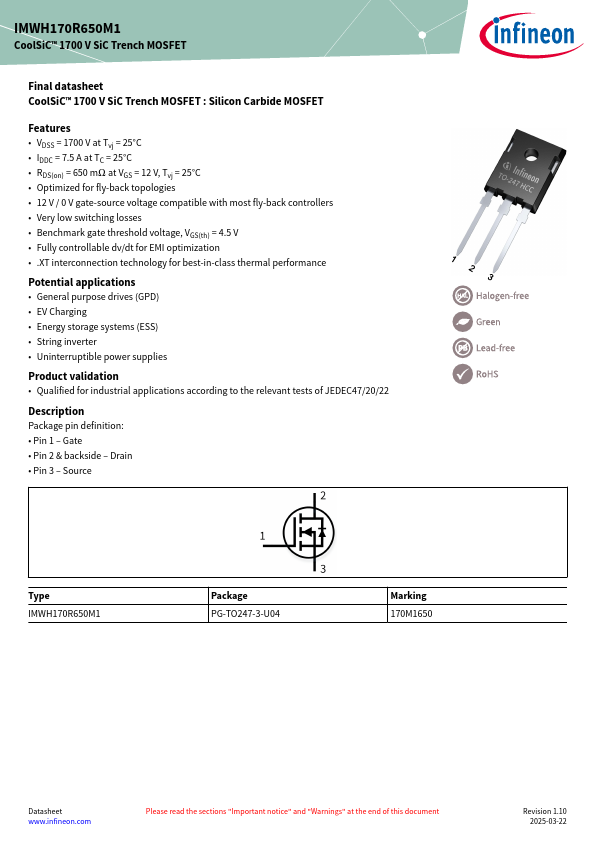

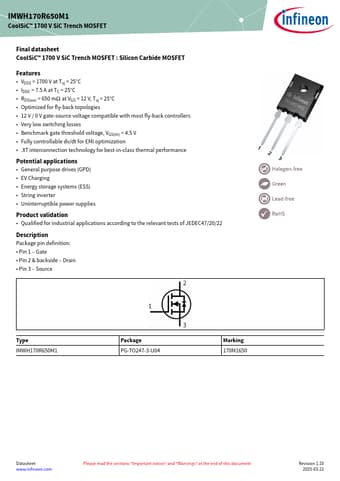

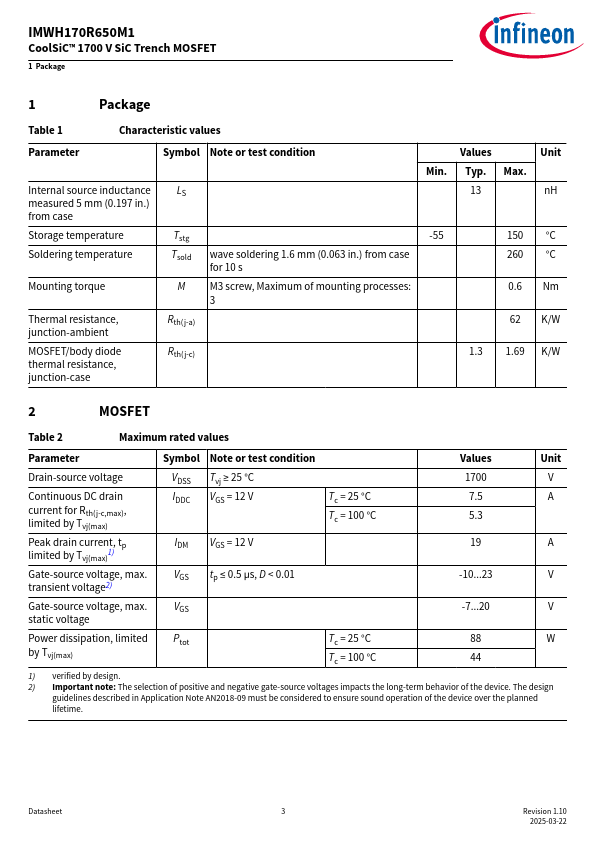

Package pin definition: Pin 1 Gate Pin 2 & backside Drain Pin 3 Source TO-247 HCC 3Pin 2021-10-27 restricted Copyright © Infineon T Type IMWH170R650M1 Package PG-TO247-3-U04 Marking 170M1650 Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.10 2025-03-22 IMWH170R650M1 CoolSiC™ 1700 V SiC Trench MOSFET Table of contents Table of contents Desc

Features

VDSS = 1700 V at Tvj = 25°C.
IDDC = 7.5 A at TC = 25°C.
RDS(on) = 650 mΩ at VGS = 12 V, Tvj = 25°C.
Optimized for fly-back topologies.
12 V / 0 V gate-source voltage compatible with most fly-back controllers.
Very low switching losses.
Benchmark gate threshold voltage, VGS(th) = 4.5 V.
Fully controllable dv/dt for EMI optimization.
. XT interconnection technology for best-in-class thermal performance Potential appli.
