IMW120R020M1H

MOSFET

IMW120R020M1H Features

* VDSS = 1200 V at Tvj = 25°C

* IDDC = 98 A at Tc = 25°C

* RDS(on) = 19 mΩ at VGS = 18 V, Tvj = 25°C

* Very low switching losses

* Short circuit withstand time 3 µs

* Benchmark gate threshold voltage, VGS(th) = 4.2 V

* Robust against parasitic

IMW120R020M1H General Description

1

* gate 2

* drain 3

* source TO-247

* 3Pin 2021-10-27 restricted Copyright © Infineon T Type IMW120R020M1H Package PG-TO247-3-STD-NN2.5 Marking 12M1H020 Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this .

IMW120R020M1H Datasheet (1.20 MB)

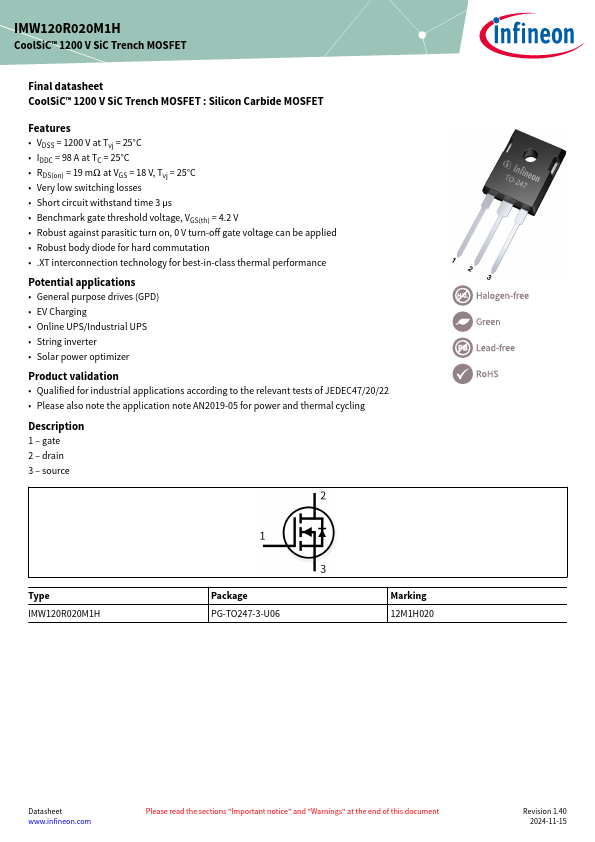

Preview of IMW120R020M1H PDF

Datasheet Details

Part number:

IMW120R020M1H

Manufacturer:

Infineon ↗

File Size:

1.20 MB

Description:

Mosfet.

📁 Related Datasheet

IMW120R007M1H MOSFET (Infineon)

IMW120R030M1H Silicon Carbide MOSFET (Infineon)

IMW120R040M1H 1200V SiC Trench MOSFET (Infineon)

IMW120R045M1 1200V SiC Trench MOSFET (Infineon)

IMW120R060M1H Silicon Carbide MOSFET (Infineon)

IMW120R090M1H Silicon Carbide MOSFET (Infineon)

IMW120R140M1H Silicon Carbide MOSFET (Infineon)

IMW120R220M1H Silicon Carbide MOSFET (Infineon)

IMW120R350M1H Silicon Carbide MOSFET (Infineon)

IMW65R007M2H MOSFET (Infineon)

TAGS

IMW120R020M1H MOSFET Infineon

Image Gallery

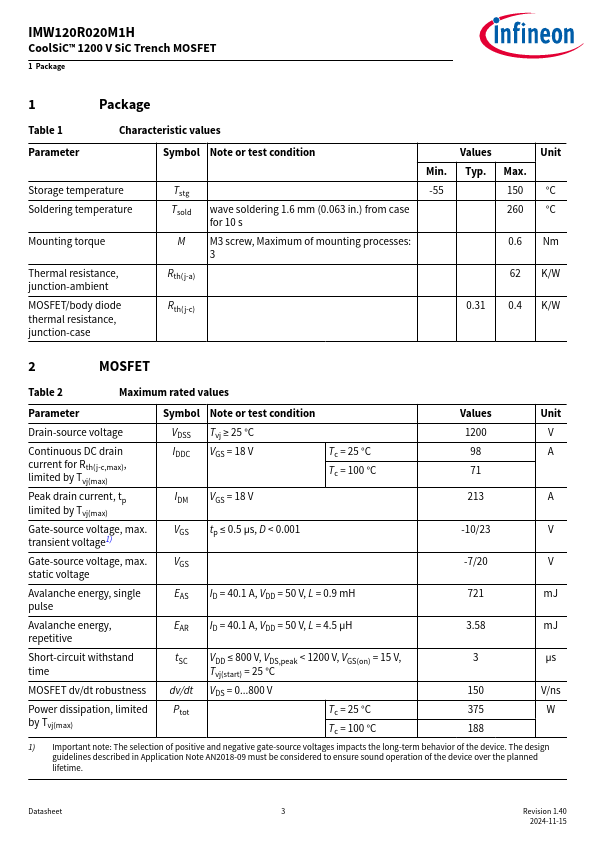

IMW120R020M1H Datasheet Preview Page 2 IMW120R020M1H Datasheet Preview Page 3
