IPA060N06N Datasheet - Infineon

IPA060N06N, MOSFET

IPA060N06N MOSFET OptiMOSTM Power-Transistor, 60 V .

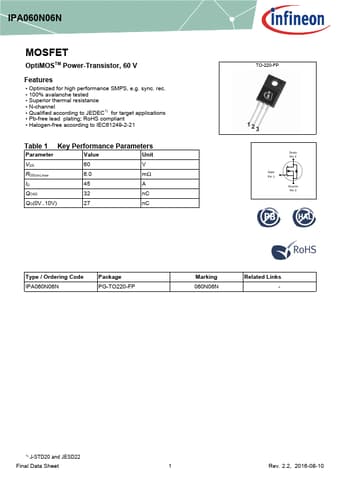

datasheet Preview Page 1 from Datasheet4u.com

IPA060N06N-Infineon.pdf

IPA060N06N Datasheet Preview — Preview of IPA060N06N PDF

Datasheet Details

Part number:

IPA060N06N

Manufacturer:

Infineon ↗

File Size:

1.58 MB

Description:

MOSFET

Features

* Optimized for high performance SMPS, e. g. sync. rec.
* 100% avalanche tested
* Superior thermal resistance
* N-channel

Applications

* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Table 1 Key Performance Parameters Parameter Value Unit VDS 60 V RDS(on),max 6.0 mΩ ID 45 A QOSS 32 nC QG(0V. .10V) 27 nC TO-220-FP Gate Pin 1 Drain Pin 2 Source Pin 3 Type / Orde
