IPA060N06NM5S - 60V MOSFET

Infineon

📥 Download Datasheet

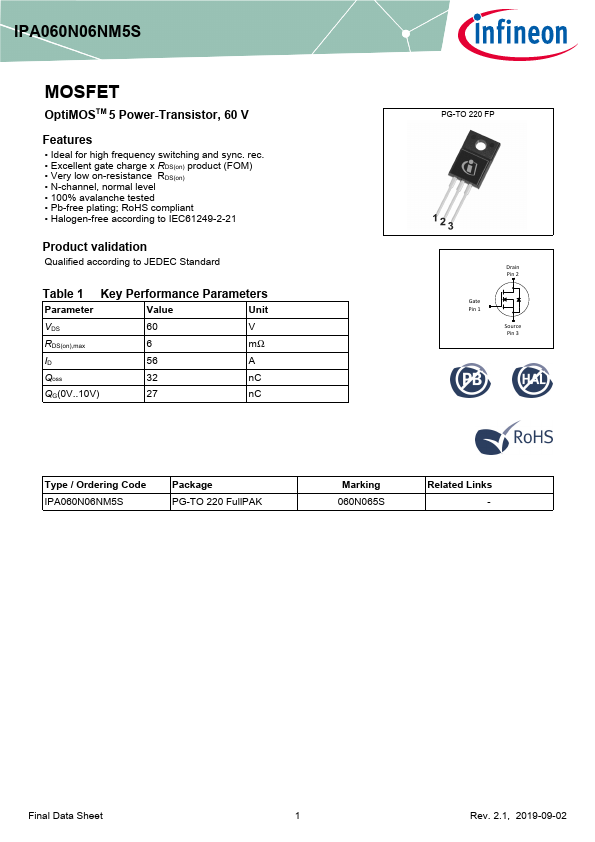

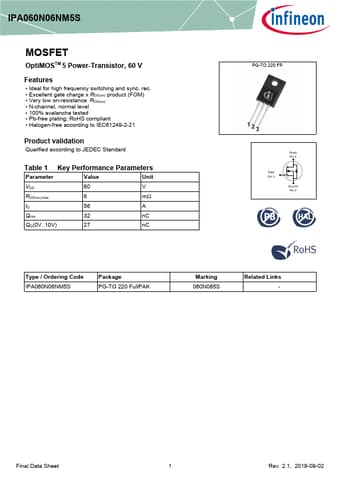

IPA060N06NM5S Datasheet Preview — Preview of IPA060N06NM5S PDF

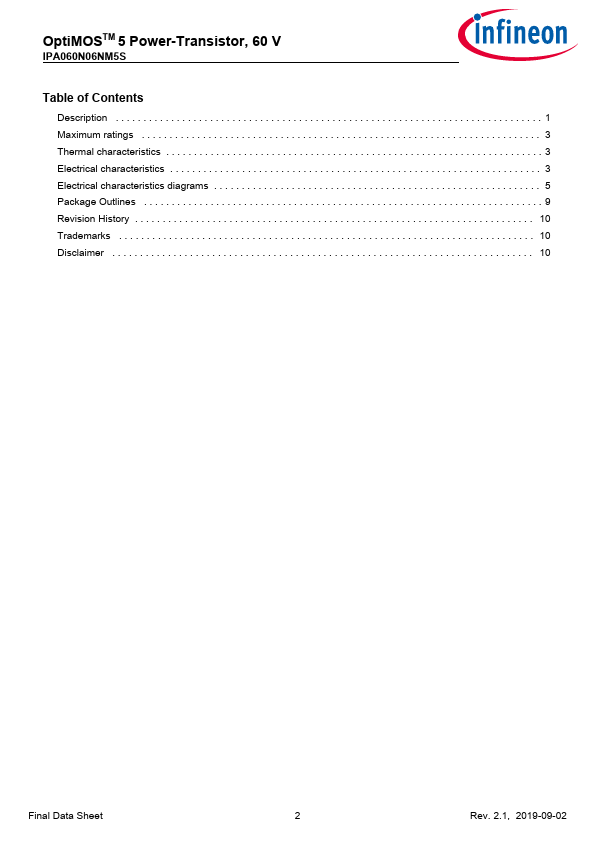

datasheet Preview Page 2

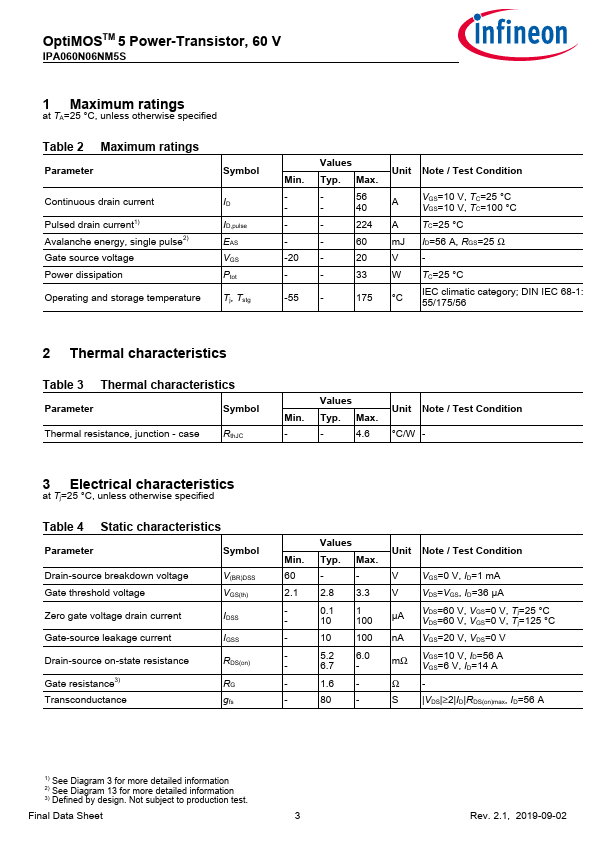

datasheet Preview Page 3

Datasheet Details

Part number	IPA060N06NM5S
Manufacturer	Infineon
File Size	1.04 MB
Description	60V MOSFET
Datasheet	IPA060N06NM5S-Infineon.pdf

IPA060N06NM5S Product details

Description

. . .

Features

Ideal for high frequency switching and sync. rec.
Excellent gate charge x RDS(on) product (FOM).
Very low on-resistance RDS(on).
N-channel, normal level.
100% avalanche tested.
Pb-free plating; RoHS compliant.
Halogen-free according to IEC61249-2-21 Product validation Qualified according to JEDEC Standard Table 1 Key Performance Parameters Parameter Value Unit VDS 60 V RDS(on),max 6 mΩ ID 56 A Qoss 32 nC QG(0V.
