IPD04N03LAG, IPD04N03LA - Power Transistor

Infineon

IPD04N03LAG Description

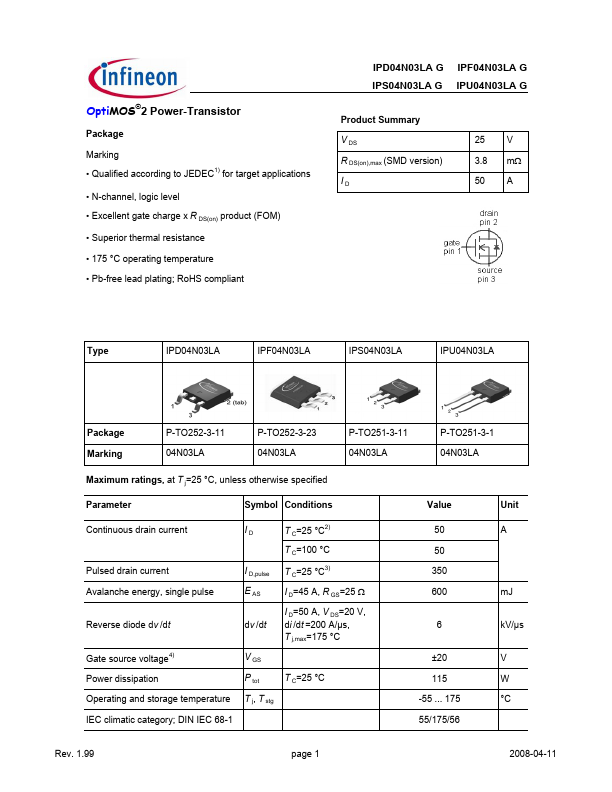

Type OptiMOS®2 Power-Transistor Package Marking * Qualified according to JEDEC1) for target applications * N-channel, logic level .

IPD04N03LAG Applications

* N-channel, logic level
* Excellent gate charge x R DS(on) product (FOM)
* Superior thermal resistance
* 175 °C operating temperature
* Pb-free lead plating; RoHS compliant IPD04N03LA G IPF04N03LA G IPS04N03LA G IPU04N03LA G Product Summary V DS R DS(on),ma

📥 Download Datasheet

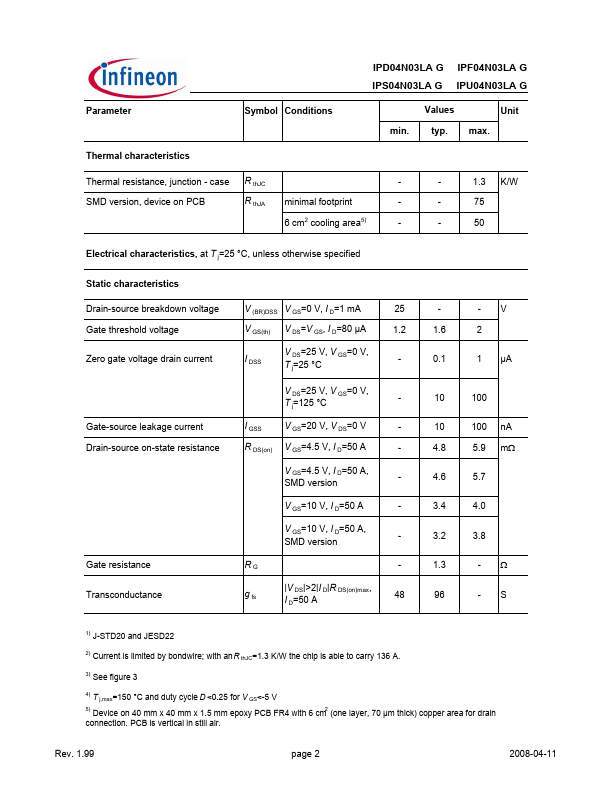

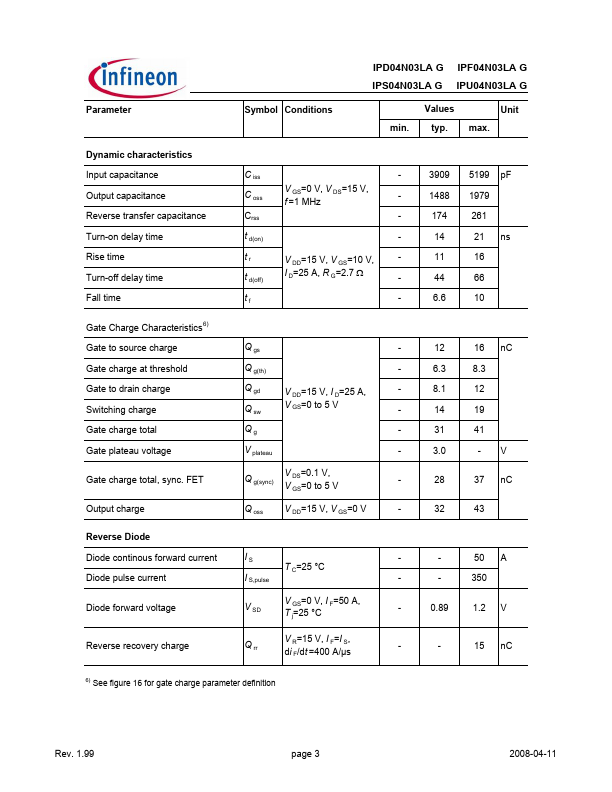

IPD04N03LAG Datasheet Preview — This datasheet PDF includes multiple part numbers: IPD04N03LAG, IPD04N03LA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: IPD04N03LAG, IPD04N03LA
Manufacturer: Infineon ↗
File Size: 529.28 KB
Datasheet: IPD04N03LA-Infineon.pdf
Description: Power Transistor
Note: This datasheet PDF includes multiple part numbers: IPD04N03LAG, IPD04N03LA.
Please refer to the document for exact specifications by model.
